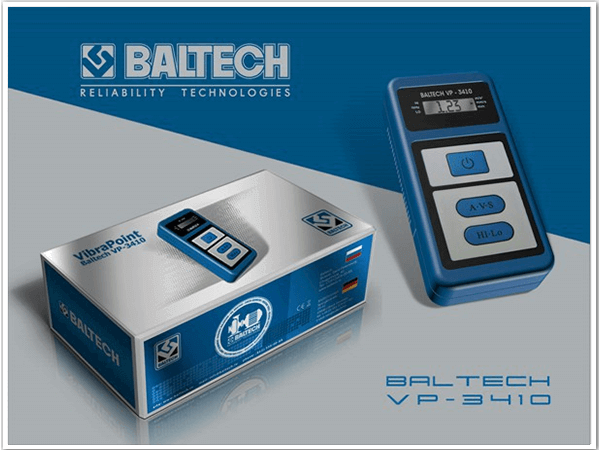

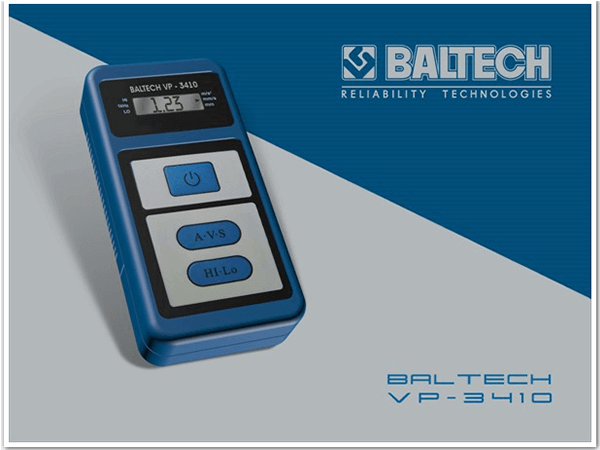

Vibration Meter BALTECH VP-3410
The vibration control is easily performed by the vibration meter BALTECH VP-3410. This vibration meter is designed to conduct an overall vibration measurement (vibration displacement, vibration velocity, vibration acceleration) according to ISO: 10816. A lightweight display unit has an external vibration sensor with a cable.
Technical Specifications
Parameter | Value |
---|---|
Measurement range Peak Vibration acceleration, m/s2 Vibration velocity, mm/s Peak - Peak Vibration displacement, um |
from 1 to 199,9 from 1 to 199,9 from 1 to 1999 |
Operation frequency range, Hz At measurement of acceleration At measurement of RMS velocity At measurement of displacement |
from 10 to 1000; from 1000 to 10000 from 10 to 1000 from 10 to 500 |
Measurement error of the Vibration Acceleration at the reference frequency 160 Hz and the Vibration velocity at the reference frequency 80 Hz |
±2dgt ±(0,05*x) |
Measurement error of the Vibration displacement at the reference frequency 45 Hz | ±2 dgt ±(0,06*x), where x – vibration value |
Continuous operation time, h | 25 |
Operation temperature range, ºC | 0-50 |
Dimensions, mm | 138×68×30 |
Weight, g | 270 |
