Bearing Induction Heater - RIH-1000

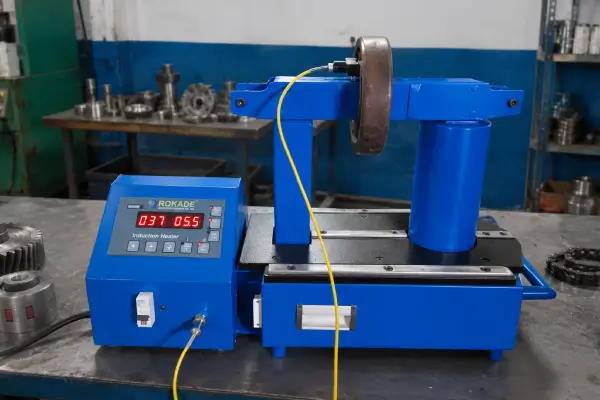

RIH-1000 is a small-size, lightweight, high-performance and cost-effective Induction Heater with an electronic control. The induction heating can be conducted horizontally. The Heater has the function of automatic demagnetization of bearing, upon reaching a defined temperature. The induction heater is designed to heat parts weighing 25-40 kg with a maximum outer diameter 300 mm.
Technical Specifications
| Product Data | RIH - 1000 |
|---|---|
| Diameter mm (Bearing) | 20 – 300 |
| Bearing Weight | 40 Kg |
| Power | 2.0 / 2.6 KVA |
| Voltage | 230V |
| Power Control | 25%, 50%, 75% & 100% |
| Temperature Control | 0 - 250°C |
| Maximum Temperature | 400C |
| Accuracy Temperature | ±3° C |
| Time – Control | 0 - 99 Minutes |
| Residual Magnetism | < 2A / cm |
| Overall Dimensions (wxdxh) (mm) | 300 x 260 x 250 |
| Space between supports (wxh) (mm) | 100 x 130 |
| Weight (Main Unit) | 19 Kg |
| Weight with Standard Yokes | 22 Kg |
| Horizontal Yoke Sizes (mm) | 14 x 14 x 220 |
| 20 x 20 x 220 | |
| 45 x 45 x 220 | |
| Can Heat Sealed & Pre-greased Bearings | ✓ |
| Thermal Over Protection | ✓ |
| Optional Accessories | |
| Horizontal Yoke Sizes (mm) | 10 x 10 x 220 |
| 18 x 18 x 220 | |
| 30 x 30 x 220 | |
| 40 x 40 x 220 | |
| Digital Thermometer (0-500C) | ✓ |
| Roll - Sliding Model | ------- |
| Swing Arm Model | ------- |
| Riser Block (Pair) (mm) | ------- |
| Magnetic Temperature Probe | ✓ |
