Wireless Vibration Analyzer
Vibration Pen - Vibro Scope
Portable wireless device for vibration monitoring and equipment condition assessment.
Revolutionary precision

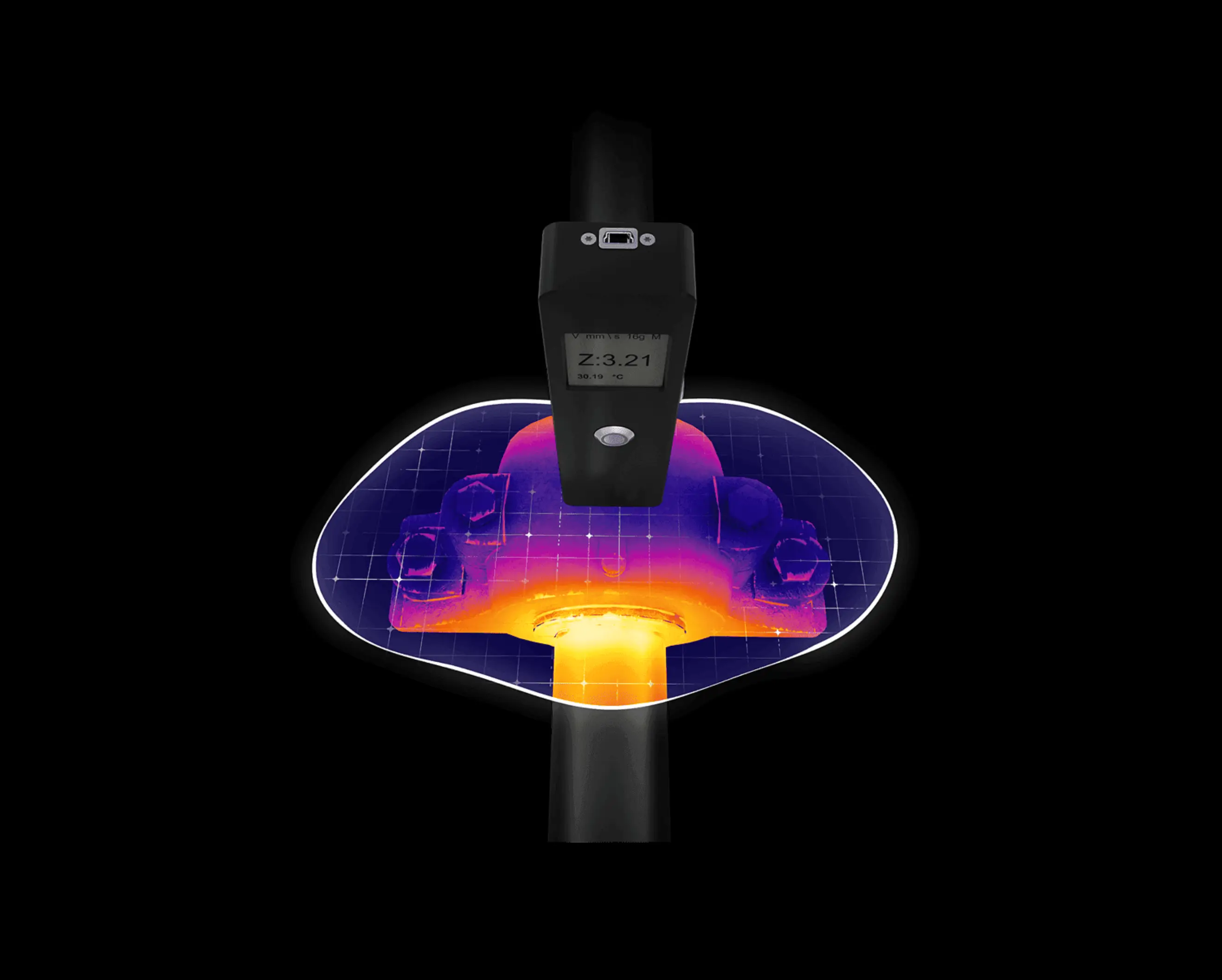

Non-Contact Temperature Sensor
+
Built-in infrared sensor allows instant surface temperature measurement without physical contact.

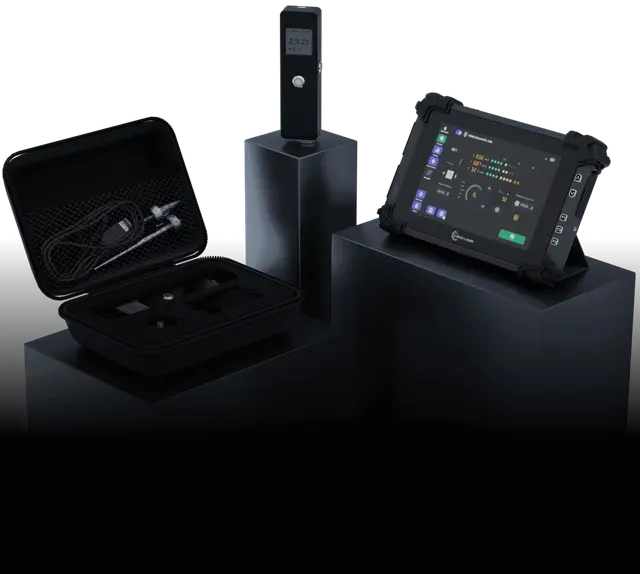

Wireless System
+
Bluetooth connectivity up to 10 m for data transfer to external devices for subsequent analysis and storage.

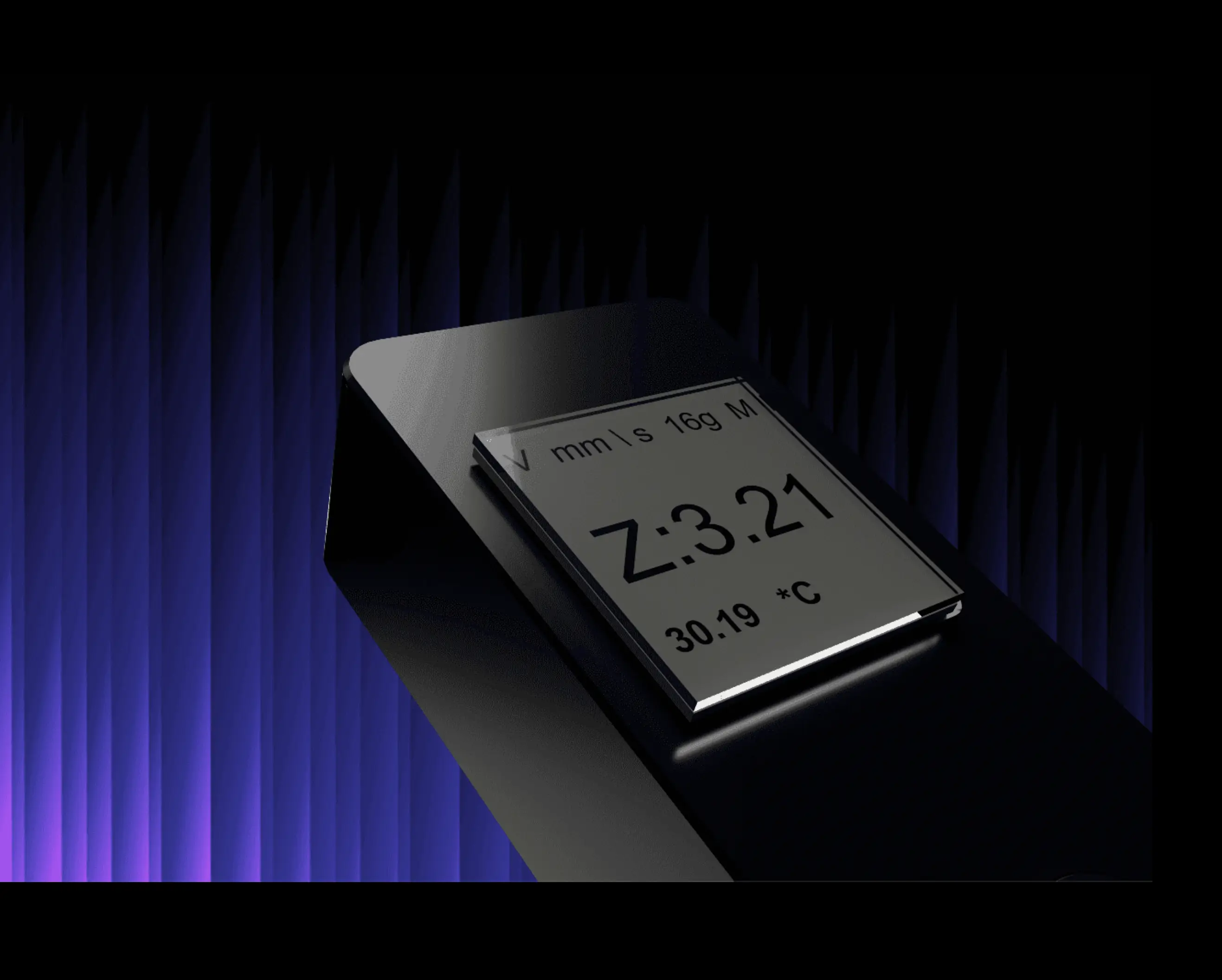

Built-in Display
+
Vibration level readings are shown directly on the device screen for immediate on-site assessment.

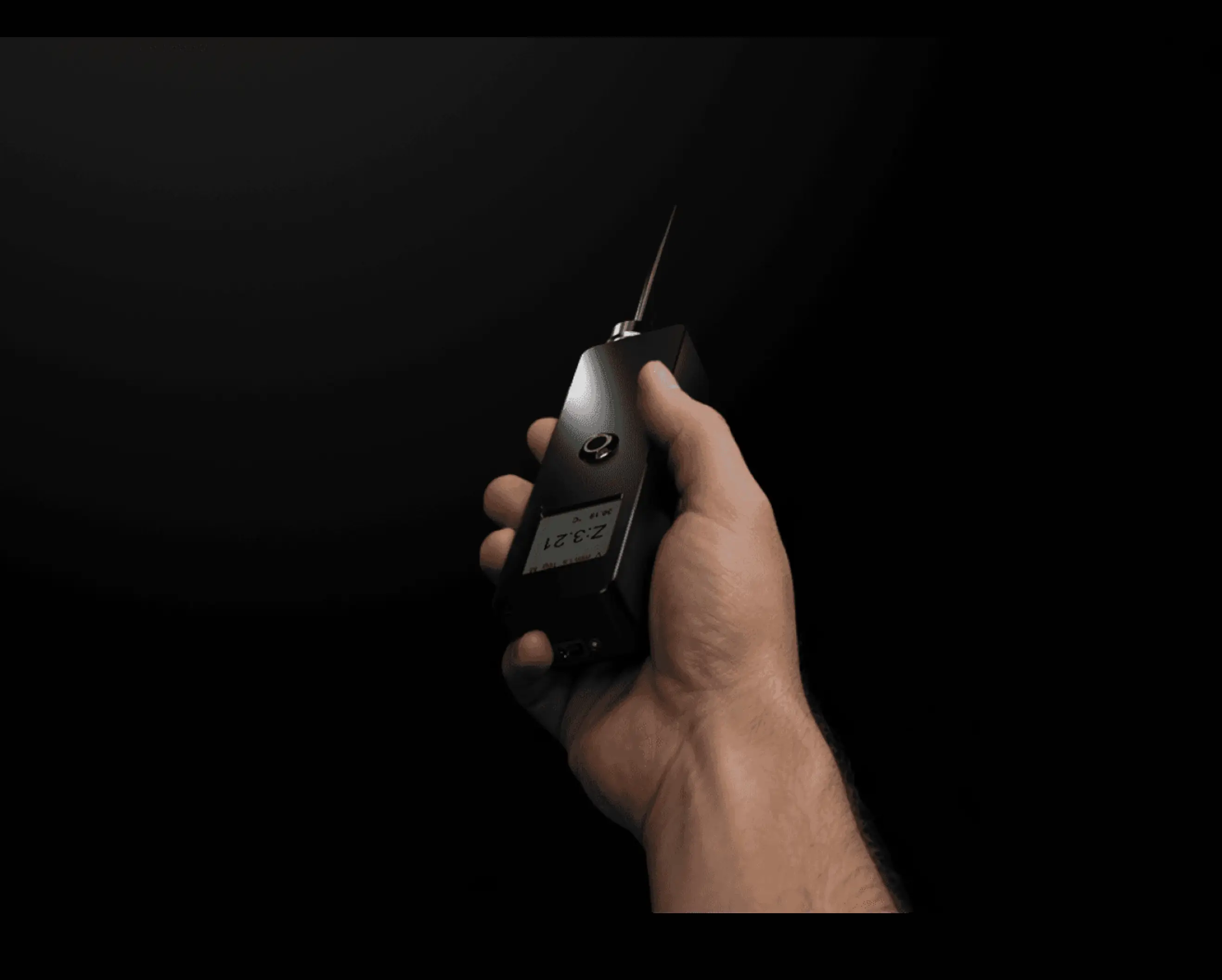

One-Button Operation
+
Single-button express measurement via vibration probe contact — touch the control point to instantly get a result.

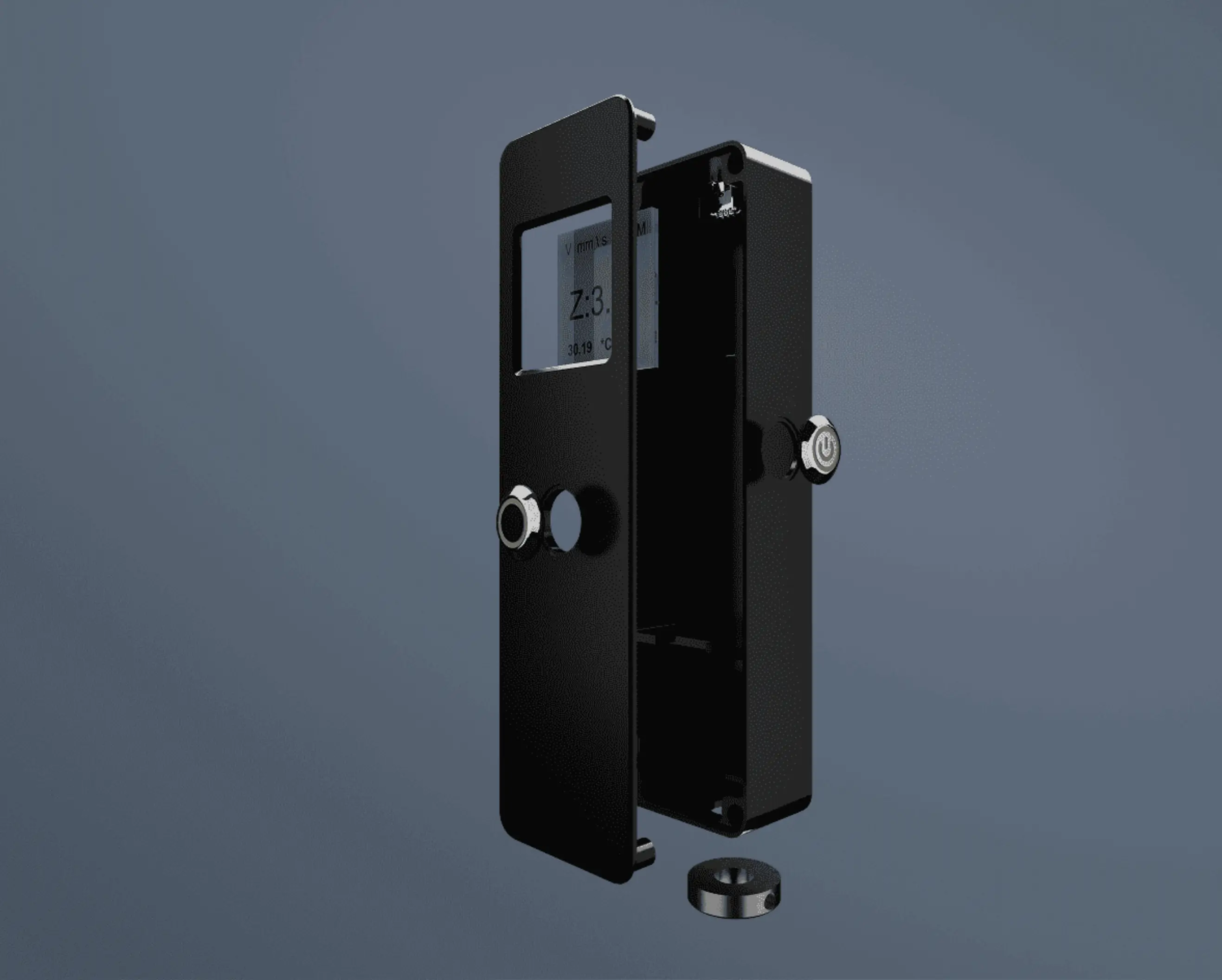

Rugged Aluminum Housing
+
Compact aluminum housing protects the device against mechanical impact and ensures reliable operation in industrial environments.

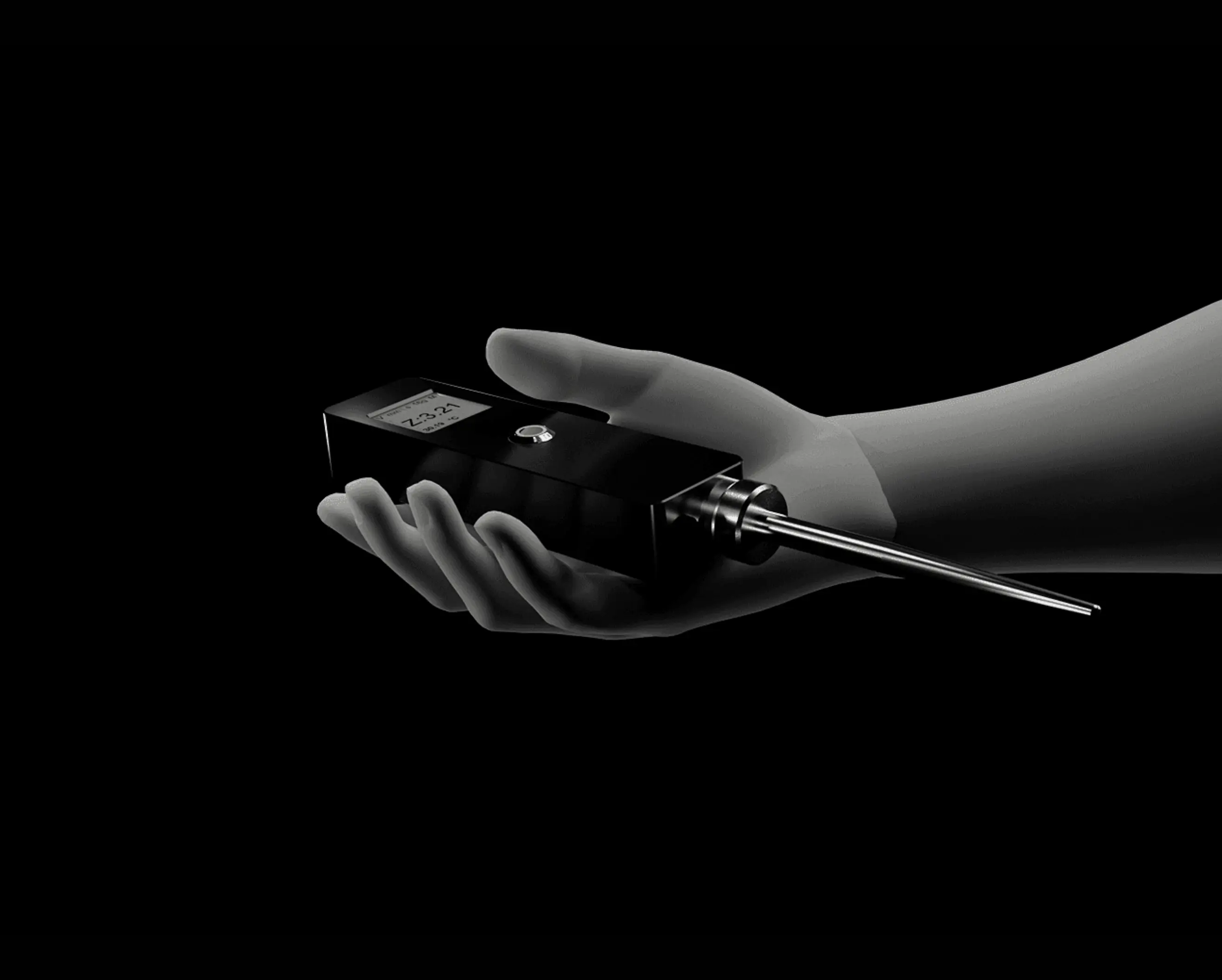

Compact & Lightweight
+
Lightweight anodized aluminum design makes the device mobile and convenient for hard-to-reach locations.
VIBRO-SCOPE
Measurement Characteristics
Frequency range (device screen), Hz
10—1000
Axes
1 (Z)
Amplitude range, m/s²
up to 150
Vibration measurement ranges
16 g
Sampling rate, kHz
26
Accuracy and Noise Level
Sensor noise
75 μg/√Hz
Relative measurement error
±5%
Non-Contact Temperature Sensor
Measurement range, °C
−70 to +380
Construction and Mounting
Mounting method
Probe
Housing material
Anodized aluminum
Power and Autonomy
Power supply
Rechargeable battery
Dimensions and Weight
Sensor dimensions, mm
40 × 20 × 140
Weight, g
200
Get Maximum Accuracy with Every Measurement
