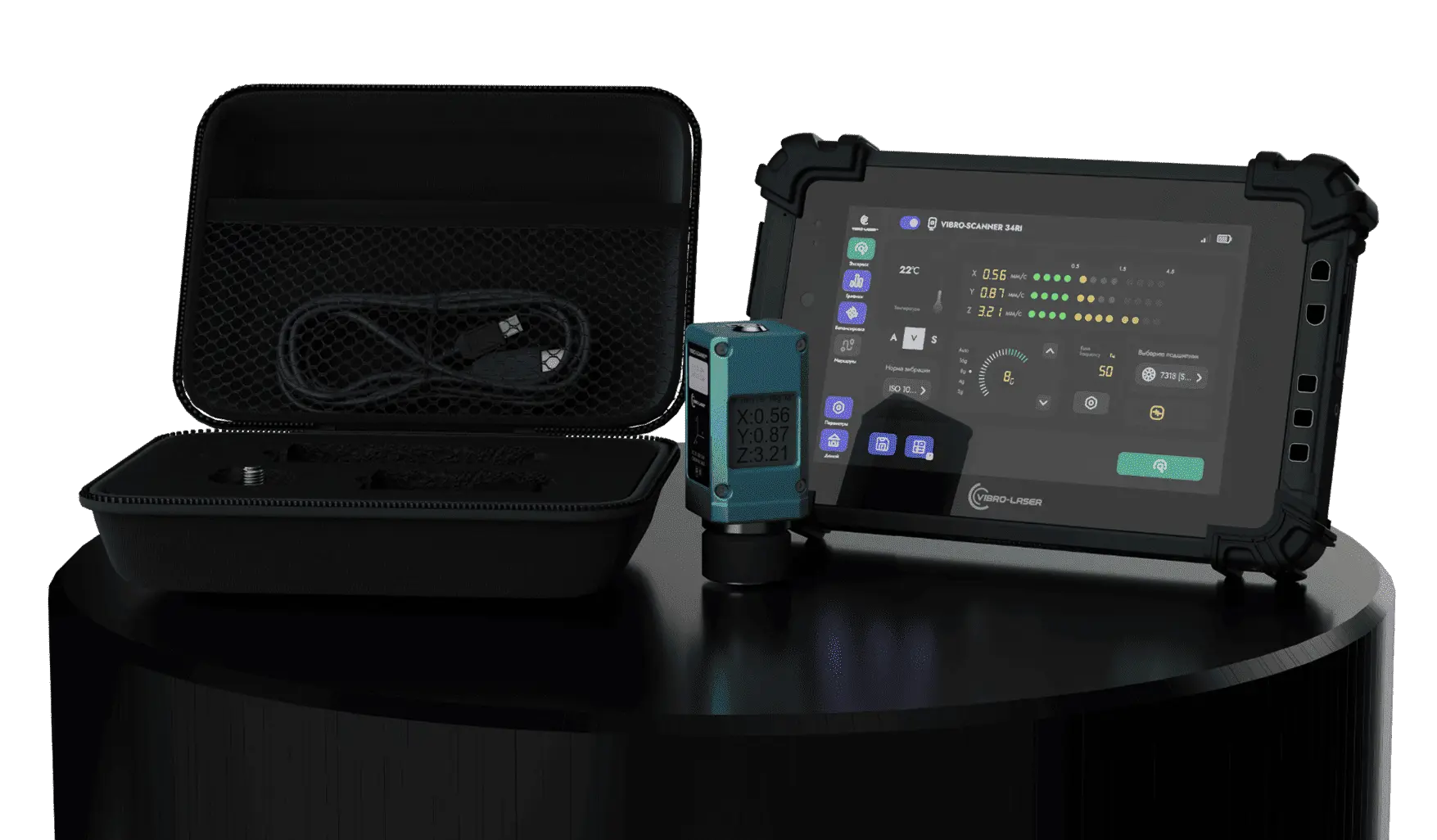

vibroscanner

Wireless Triaxial Vibration Analyzer
& balancer- Vibro Laser

Wireless vibration monitoring and express diagnostics system for real-time equipment condition assessment.

Revolutionary precision

Contact us

Wireless System

+
Wireless Bluetooth connectivity and data transfer up to 10 m range.

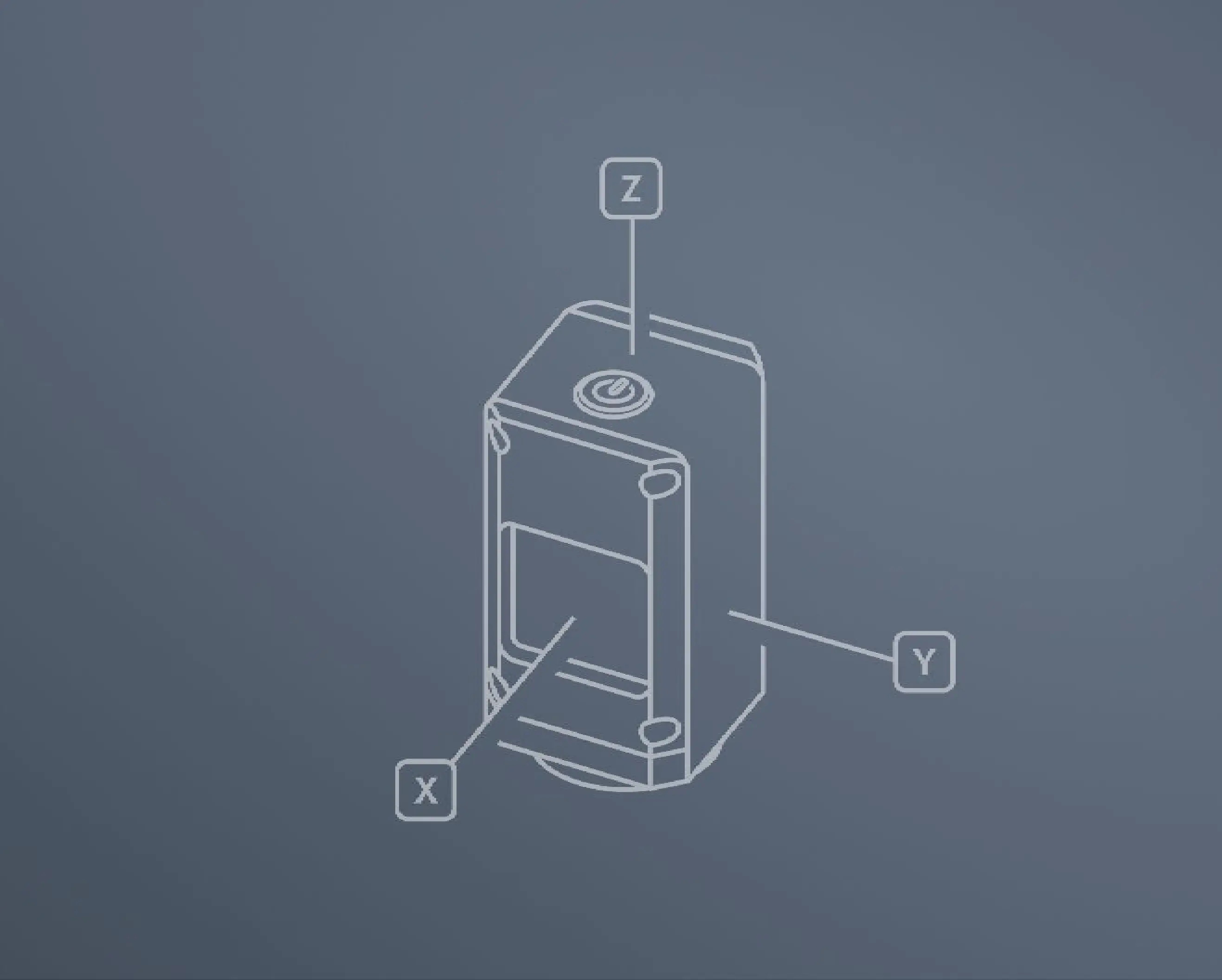

Three Axes + Temperature

+
Simultaneous vibration measurement on 3 perpendicular axes (X, Y, Z) plus an integrated temperature channel.

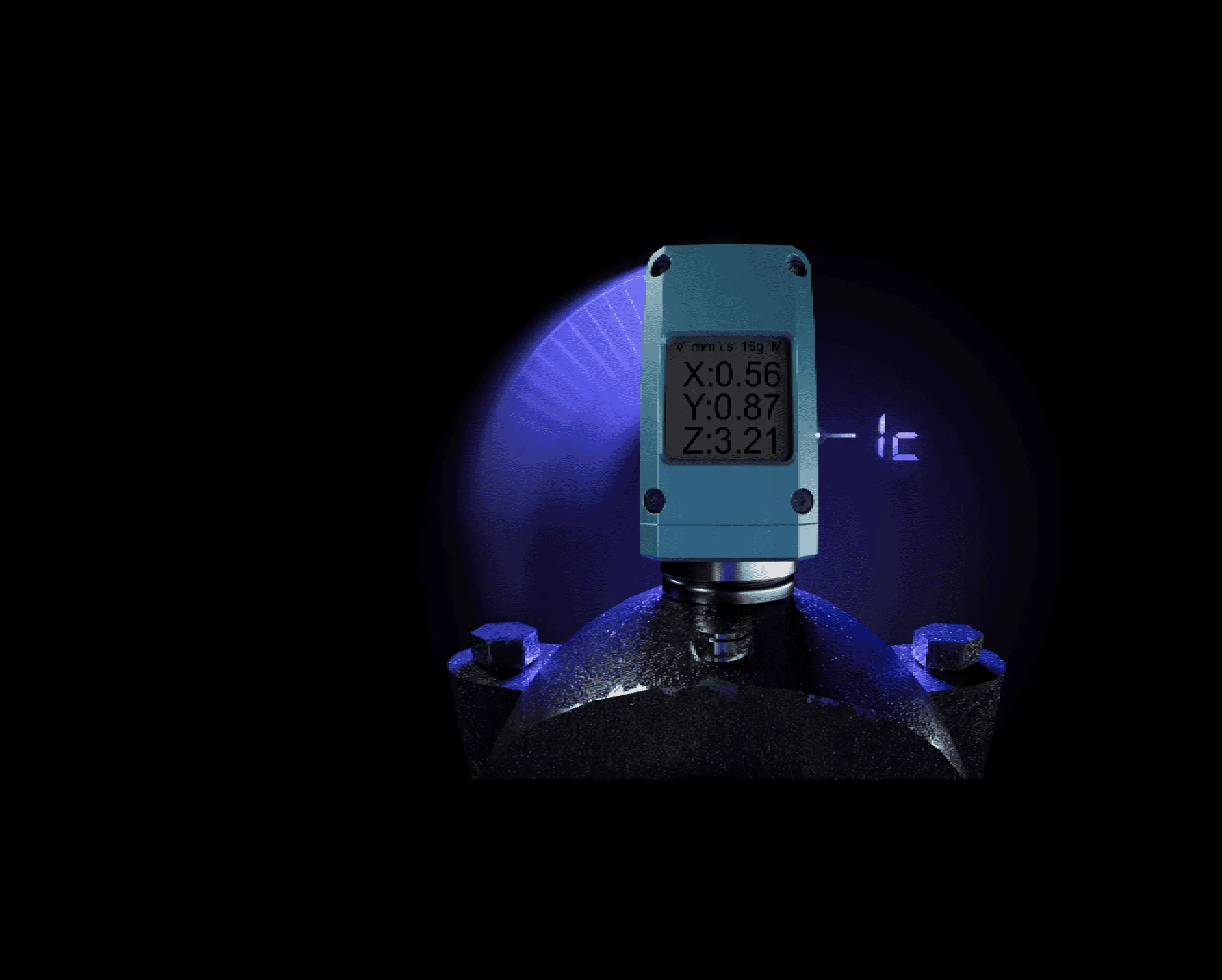

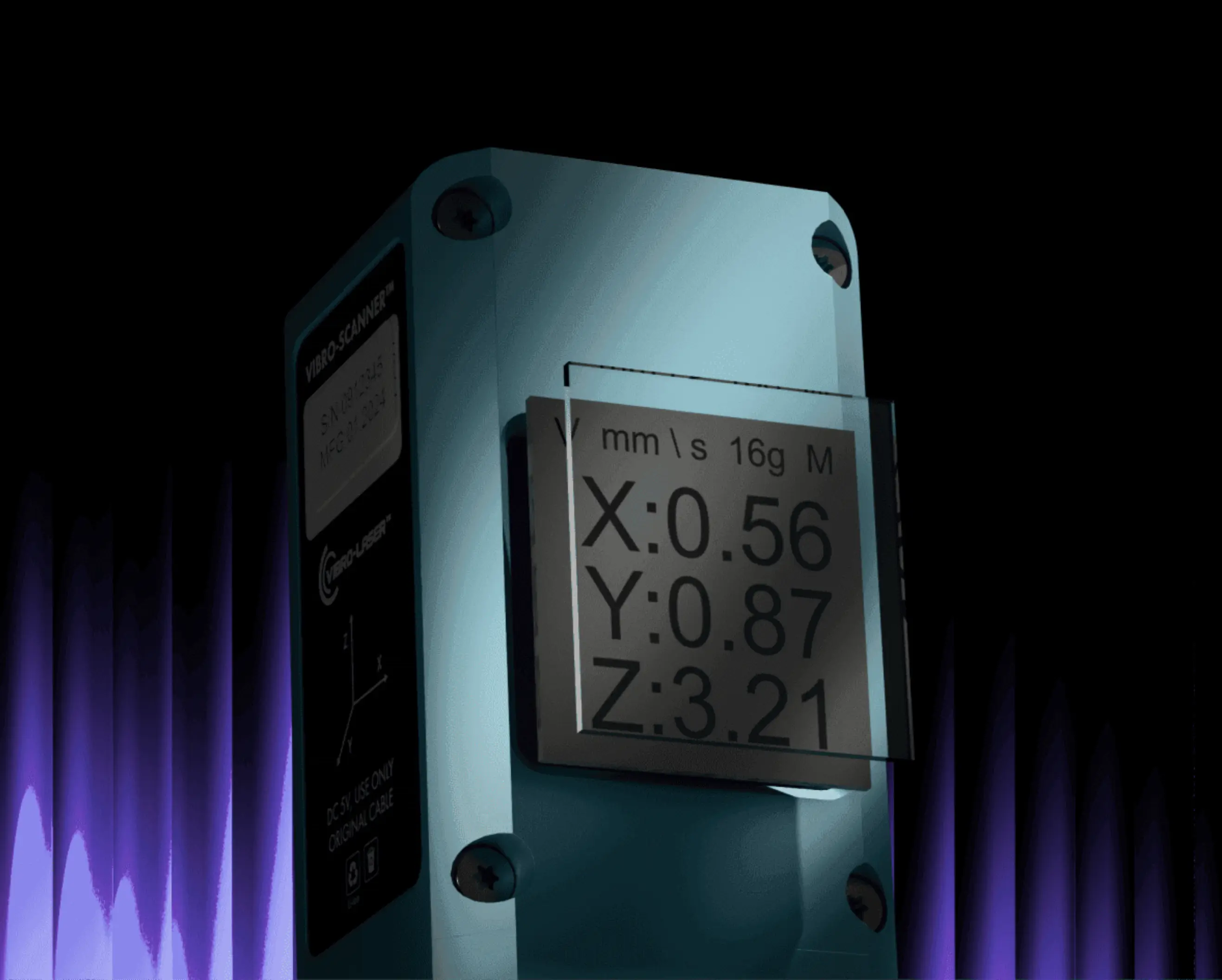

Built-in Display

+
Vibration level readings are shown directly on the device screen without requiring a connected phone.

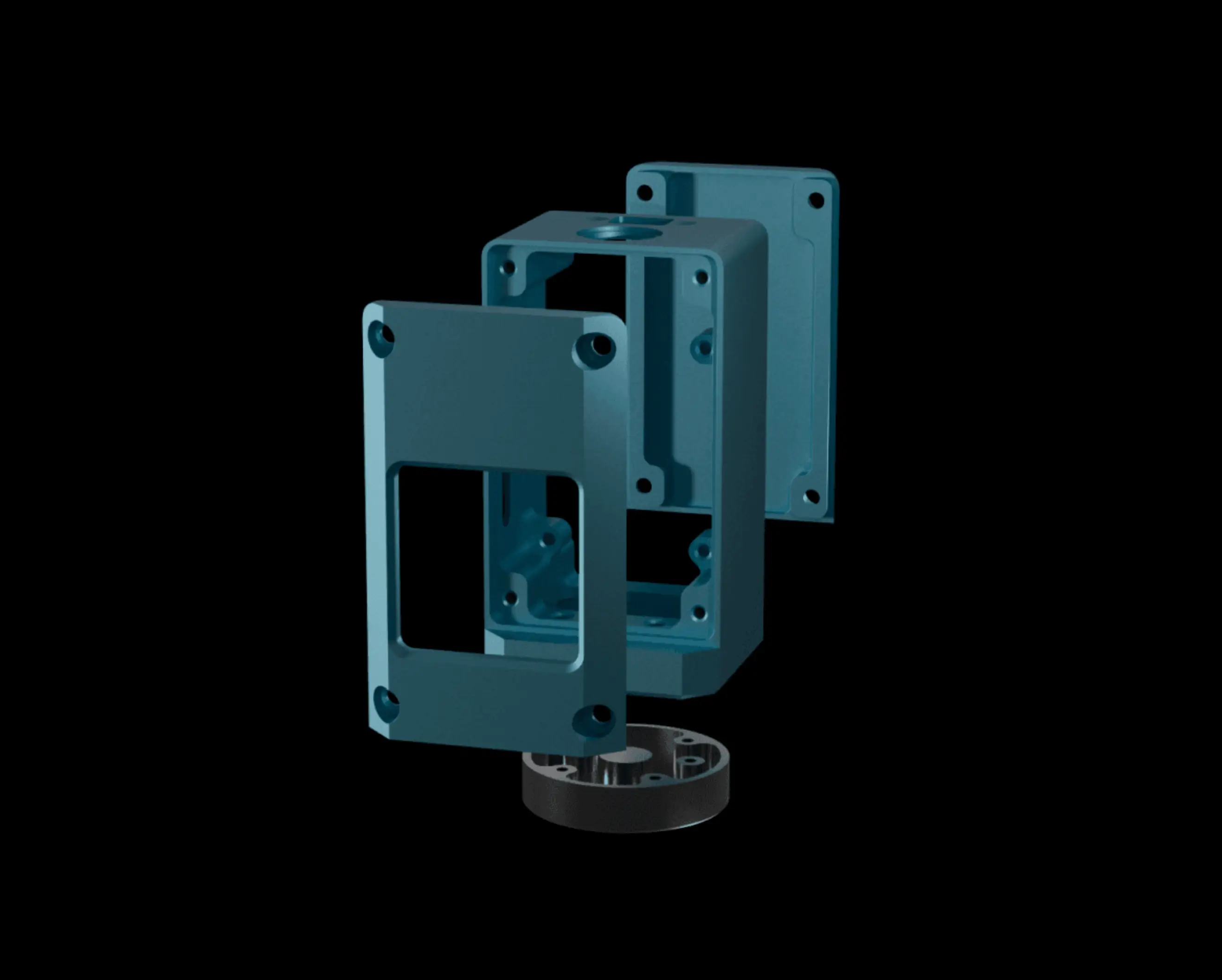

Rugged Aluminum Housing

+
Compact and reliable aluminum housing designed for long-term industrial use.

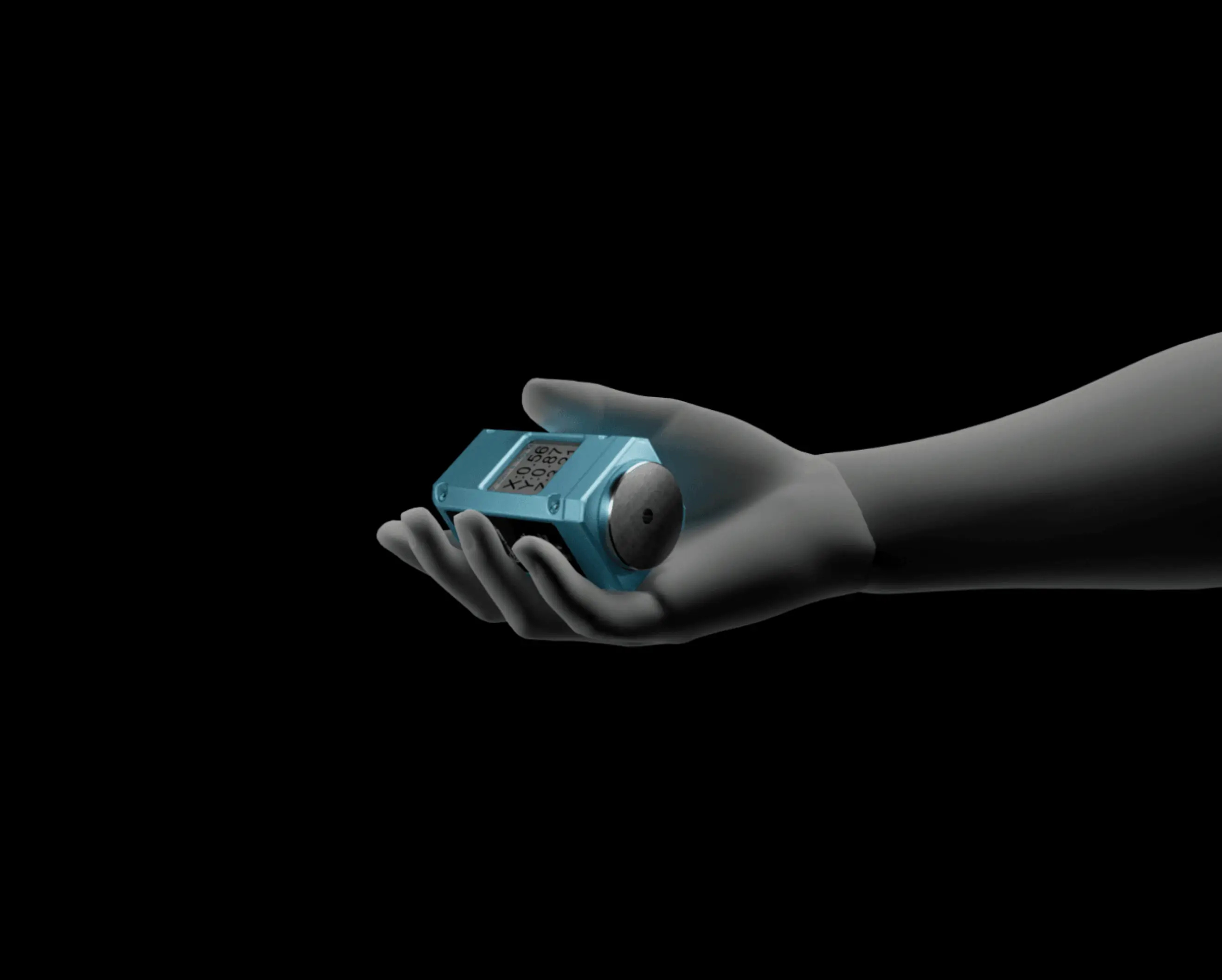

Compact & Lightweight

+
200 g weight and compact dimensions allow comfortable handheld operation and easy transport.

Autonomous Measurement

+
Displays overall vibration level (10-1000 Hz) on the built-in screen independently without app connection.

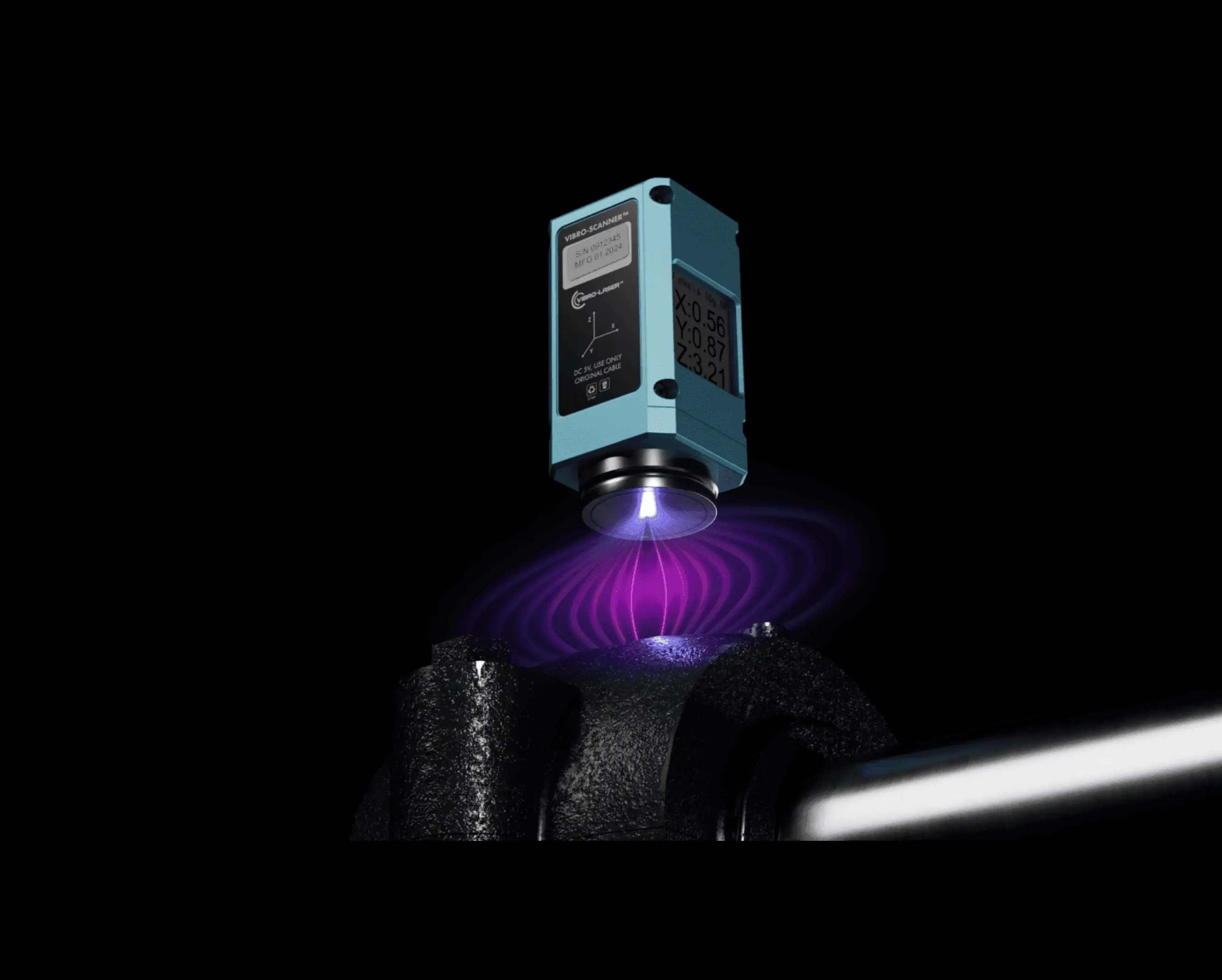

Quick Mounting

+
Fast and secure installation using reliable magnetic mounts for immediate measurement readiness.

Defect Detection

+
Identifies imbalance, misalignment, and bearing defects.

Express Diagnostics

+
Real-time three-axis vibration and temperature readings.

Diagnostic Charts

+
Temporal graphs, spectra, and third-octave analysis.

Bearing Database

+
Integrated database of 30,000+ bearing models.

Repeatability Table

+
Measurement consistency tracking over time.

ISO Standards

+
Integrated ISO standards for automatic condition evaluation.

Routes

+
Sequential measurement tracking with equipment mapping.

Parallel Connection

+
Simultaneous multi-sensor data acquisition.

Defect Detection

Identifies imbalance, misalignment, and bearing defects in rotating equipment. Automatic analysis detects deviations from normal vibration profiles.

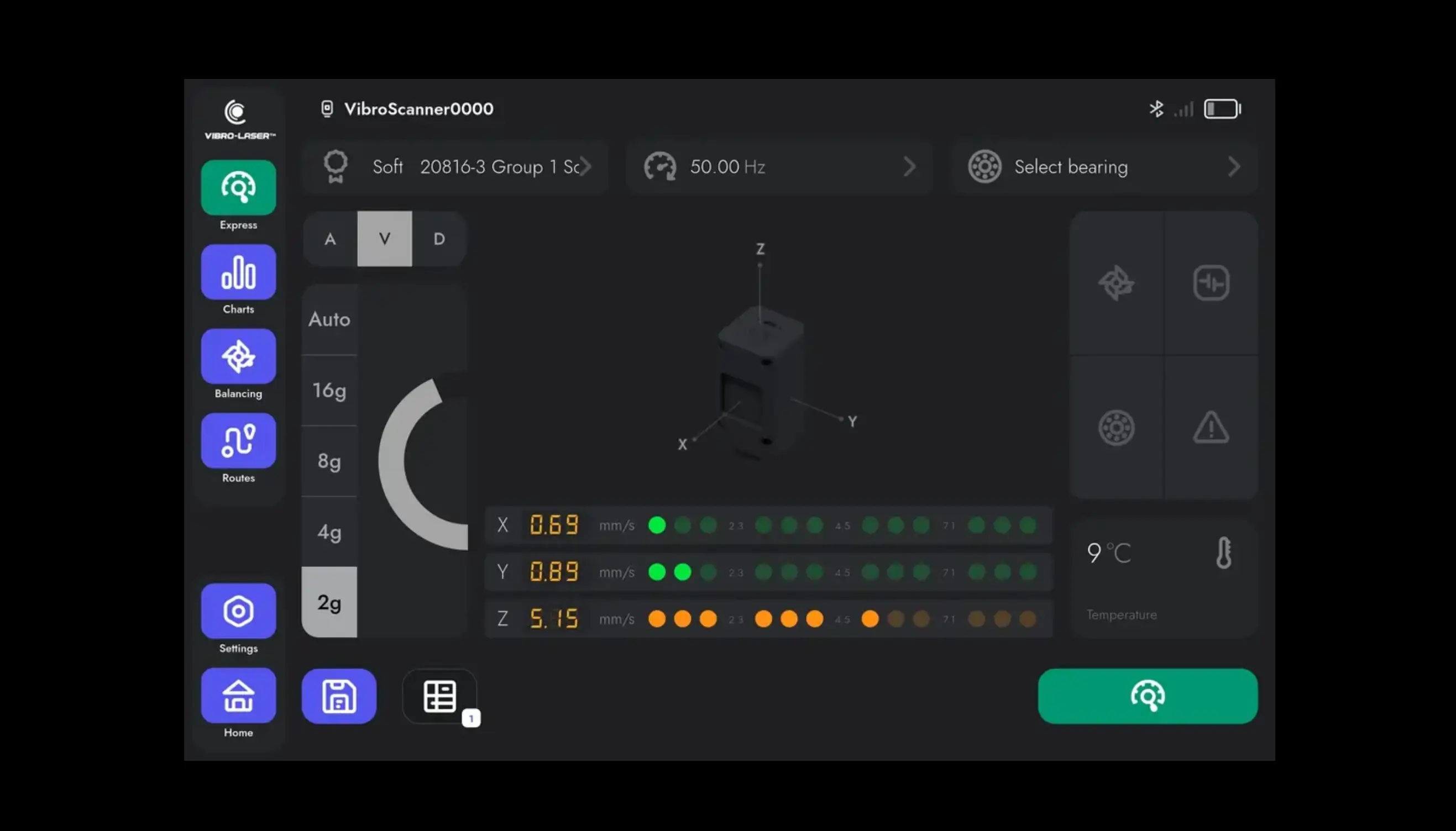

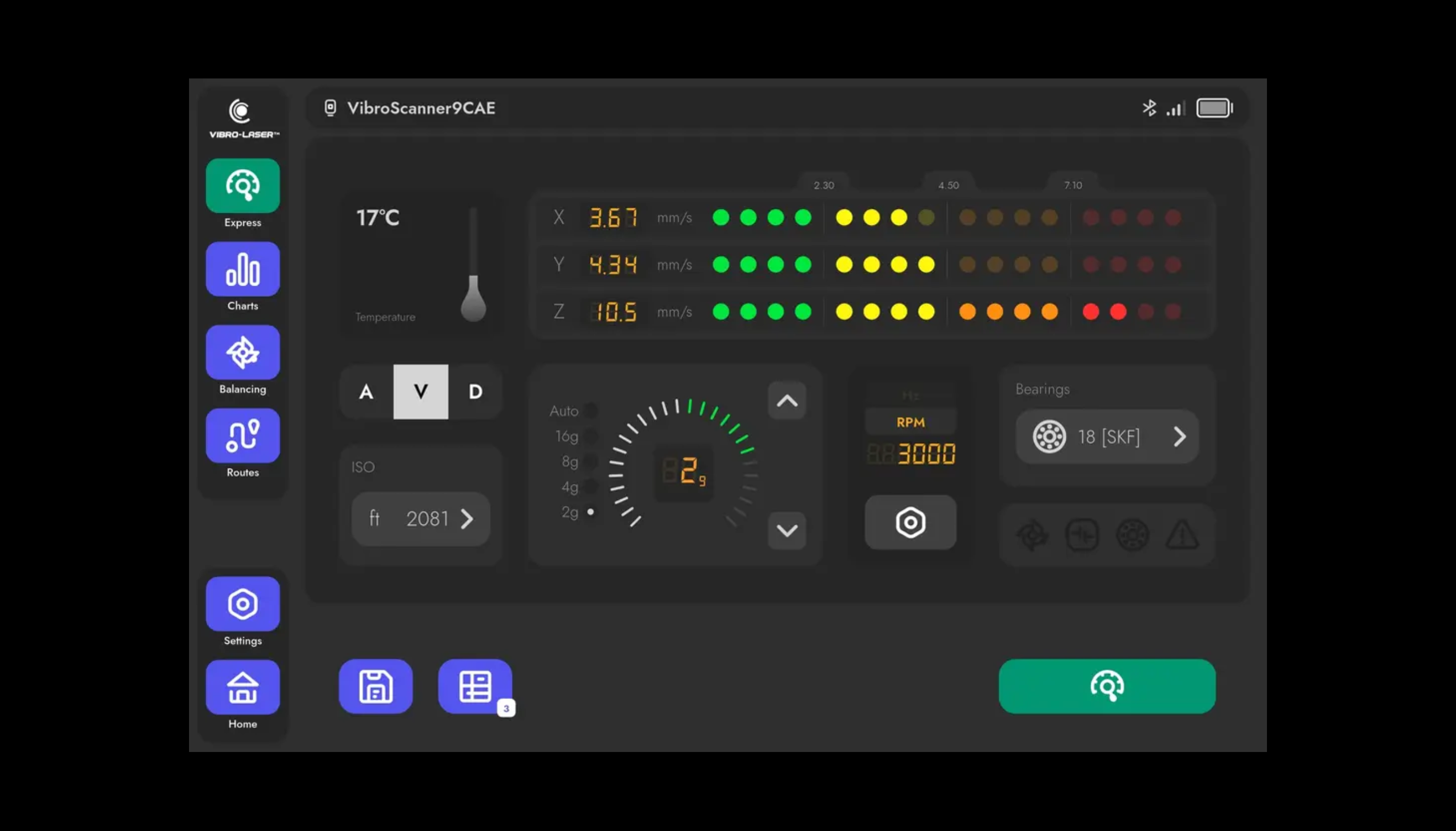

Express Diagnostics

Real-time vibration readings across three axes with temperature data and automatic fault detection on a unified interface.

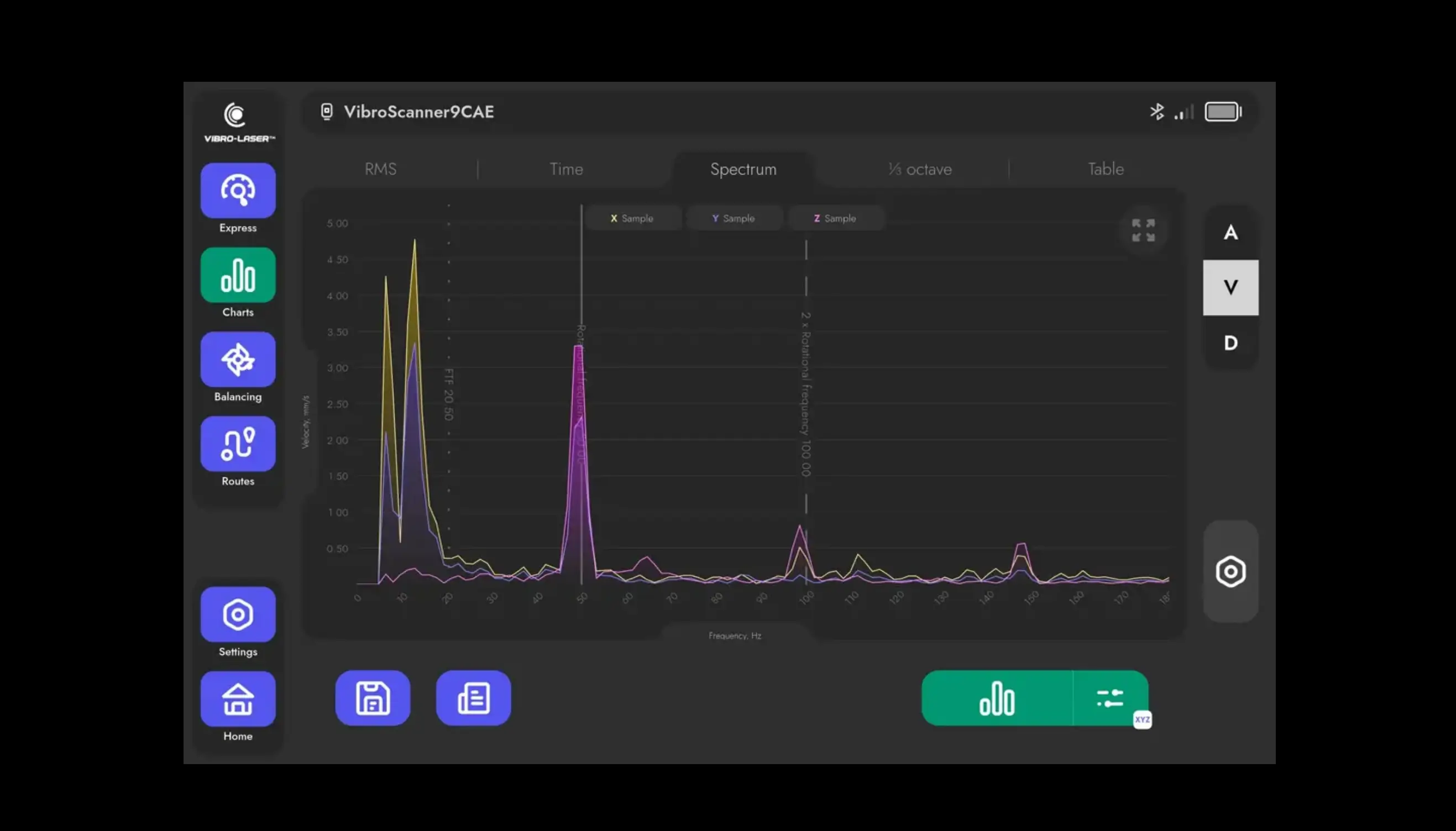

Diagnostic Charts

Temporal graphs, spectra, and third-octave analysis for comprehensive condition assessment. Frequency band evaluation and data storage included.

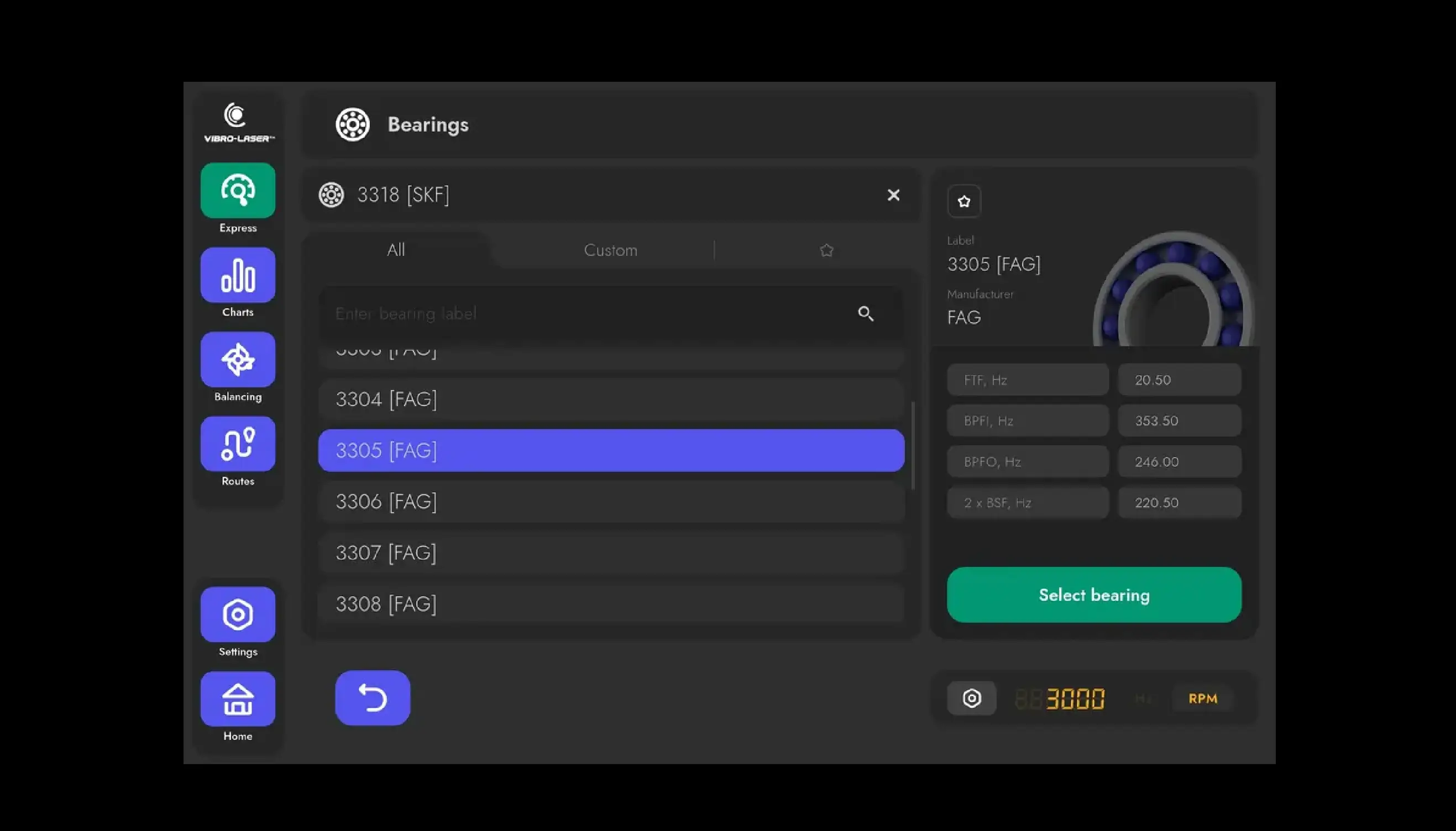

Bearing Database

Integrated database of 30,000+ bearing models with automatic parameter application for streamlined equipment setup and diagnostics.

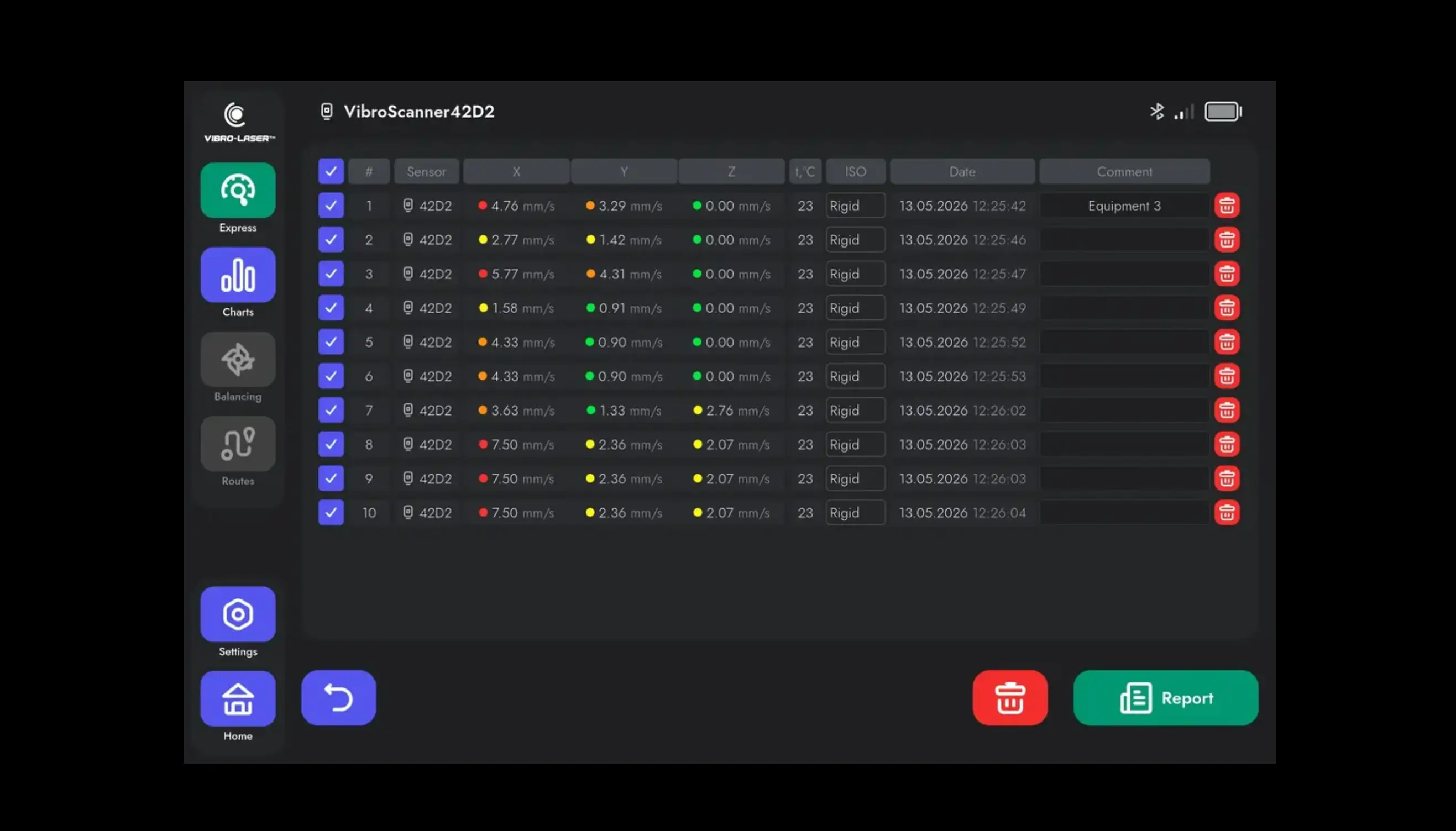

Repeatability Table

Measurement consistency comparison and tracking over time to monitor equipment condition trends and validate maintenance results.

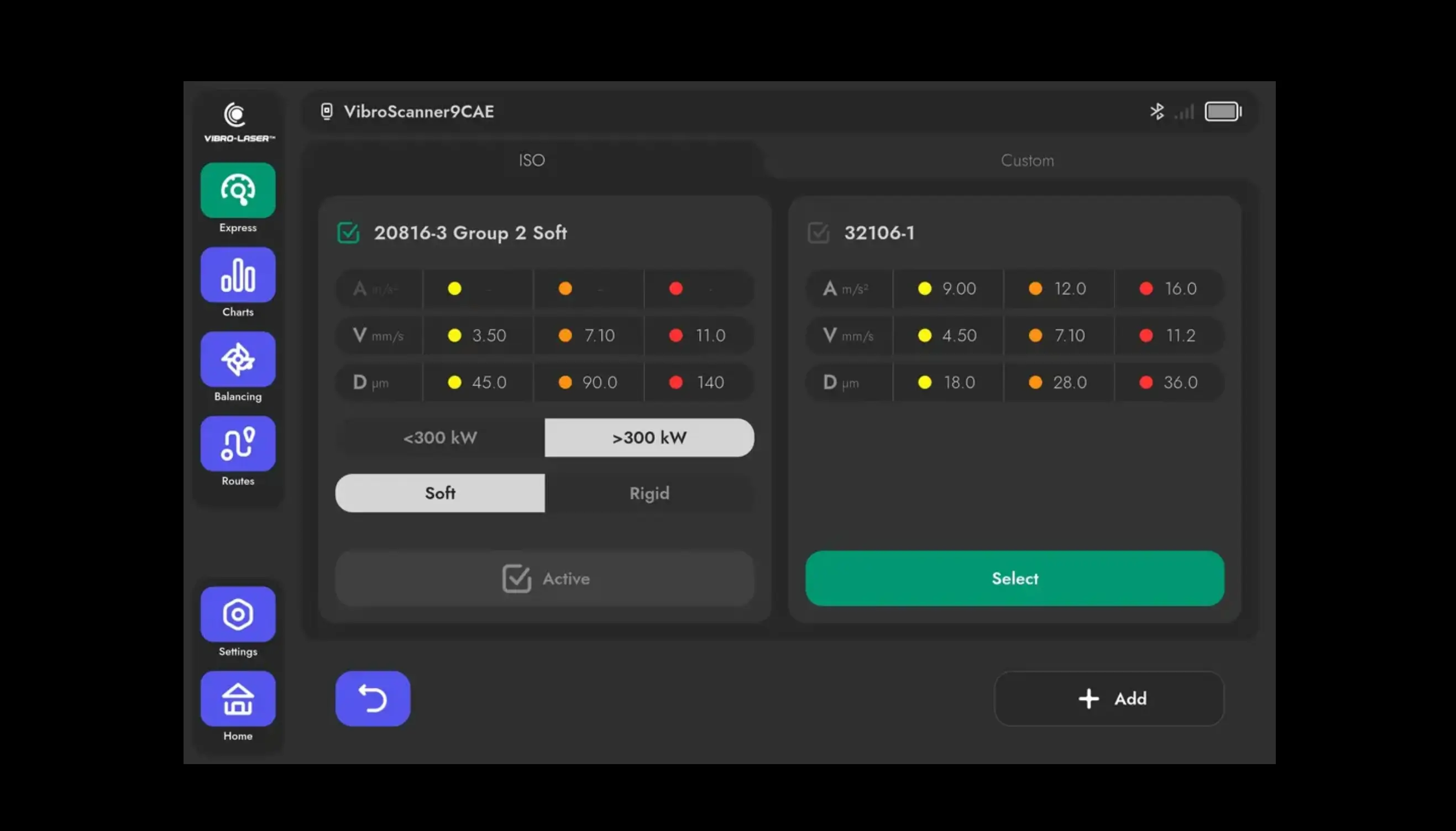

ISO Standards

Integrated ISO standards for automatic equipment condition evaluation. Custom standards can be added for specific requirements.

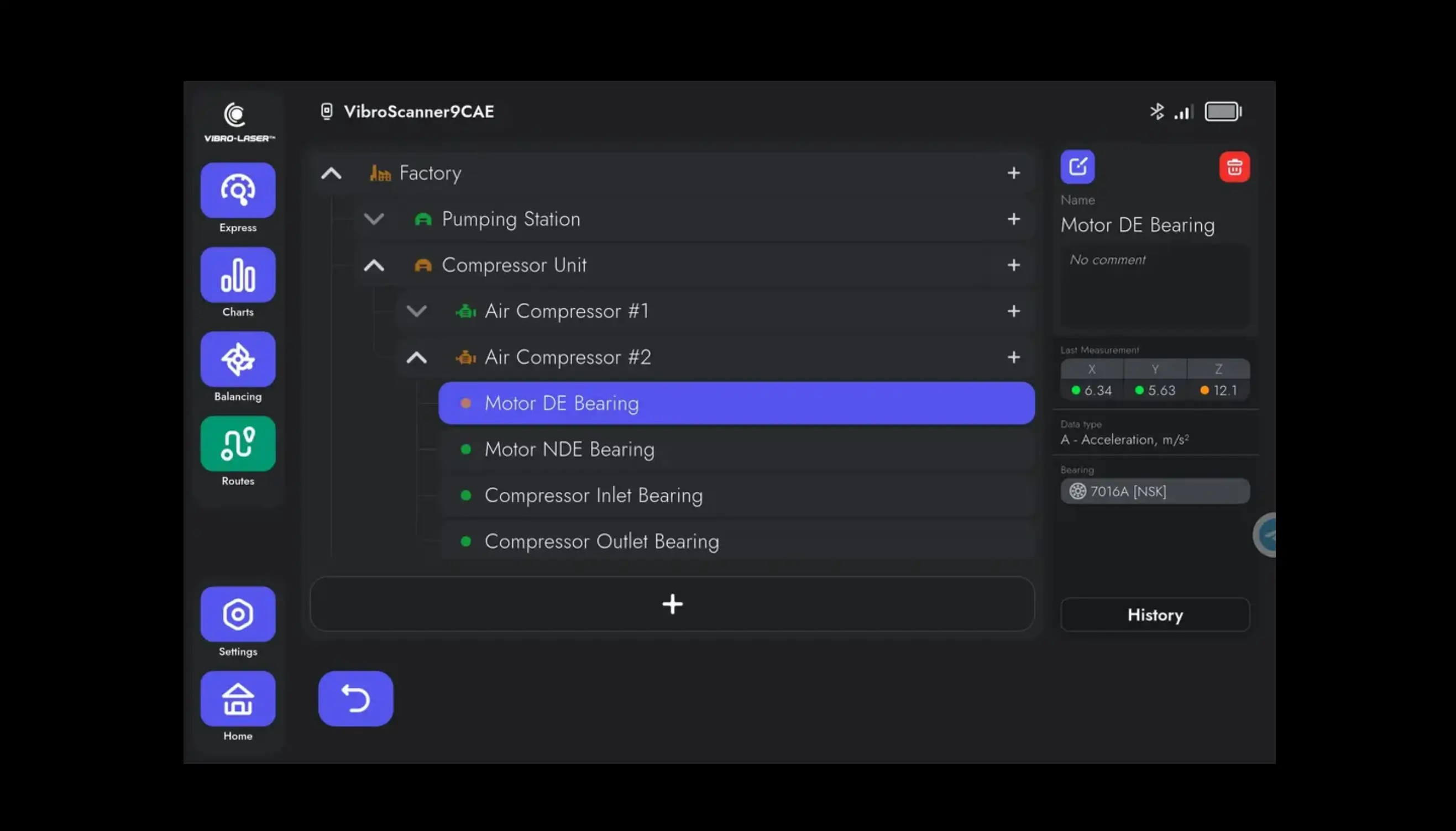

Routes

Sequential measurement tracking with enterprise equipment mapping for systematic inspection management and documentation.

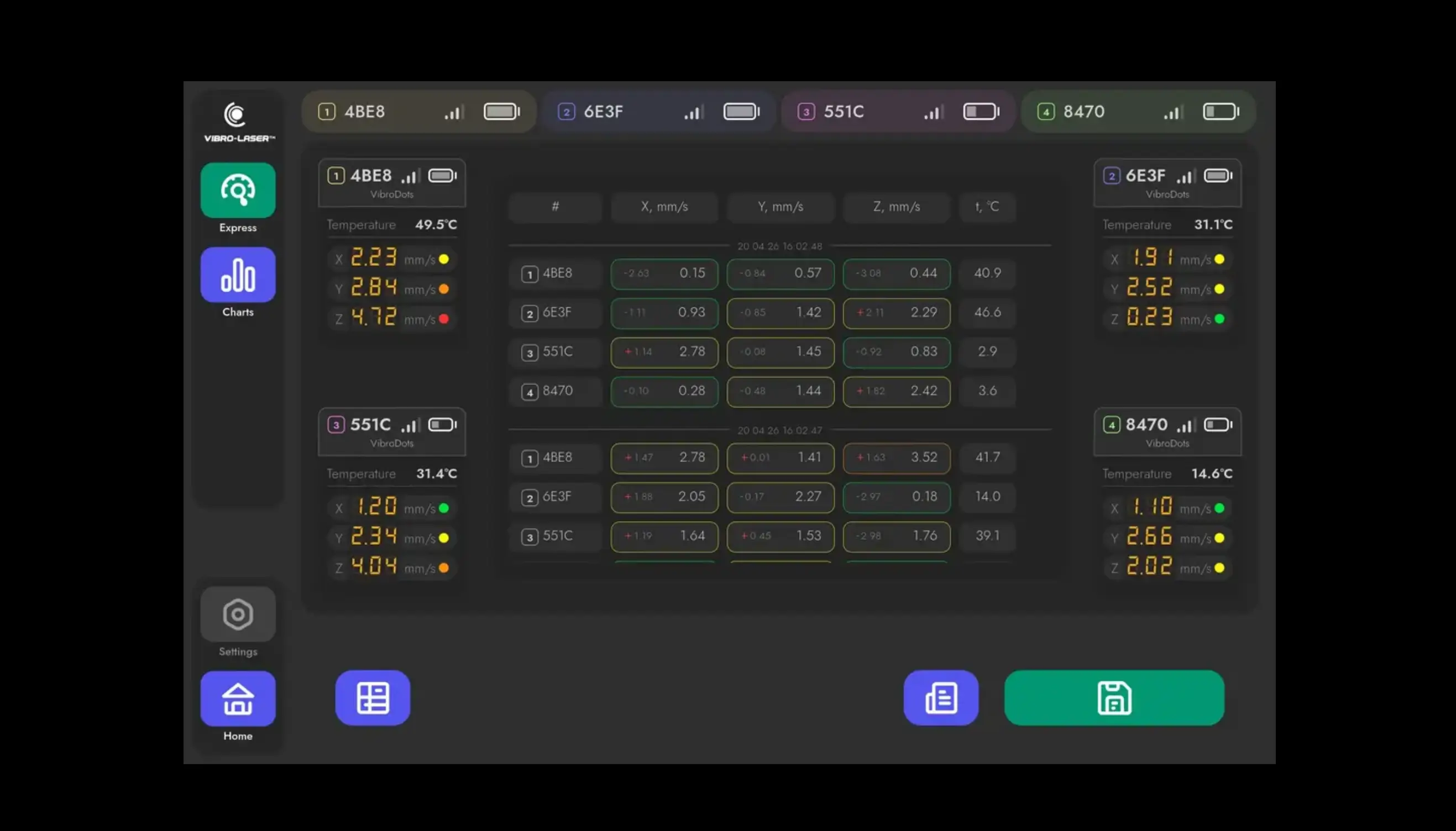

Parallel Connection

Simultaneous multi-sensor data acquisition for comprehensive vibration diagnostics across multiple measurement points.

VIBRO-SCANNER

Measurement Characteristics

Frequency range (device screen), Hz
10—1000
Frequency range (app), Hz
5—6000
Axes
3 (X, Y, Z)
Amplitude range, m/s²
up to 150
Vibration measurement ranges
2 / 4 / 8 / 16 g
Sampling rate, kHz
26

Accuracy and Noise Level

Sensor noise
75 μg/√Hz
Relative measurement error
±5%

Operating Conditions

Operating temperature range, °C
-40 to +105

Construction and Mounting

Mounting method
Magnet, stud
Housing material
Anodized aluminum

Power and Autonomy

Power supply
Rechargeable battery

Dimensions and Weight

Sensor dimensions, mm
40 × 40 × 80
Weight, g
200
