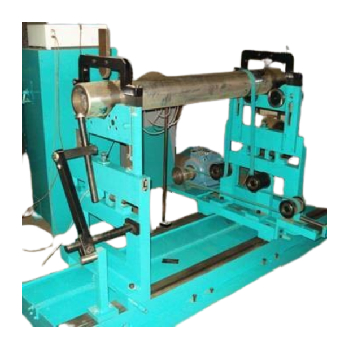

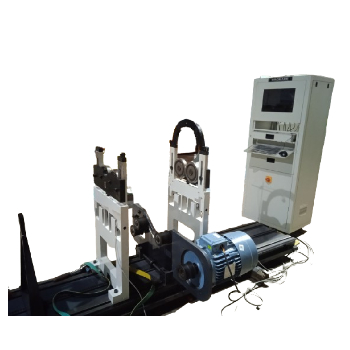

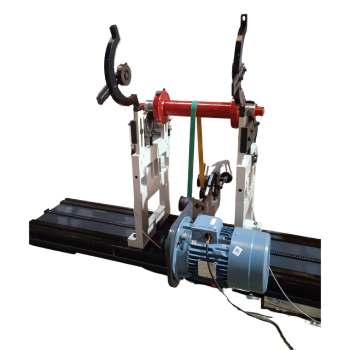

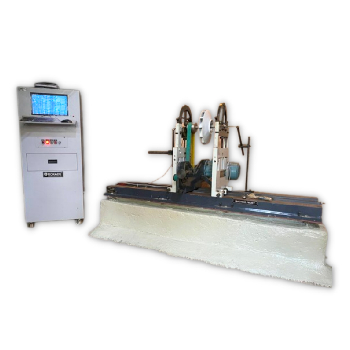

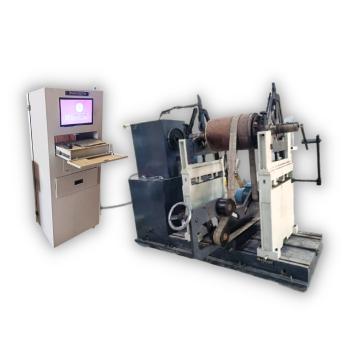

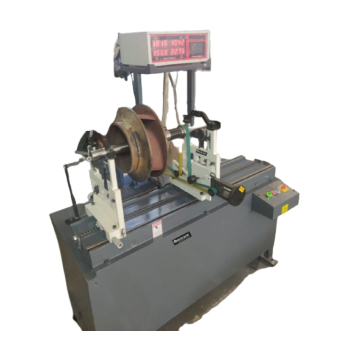

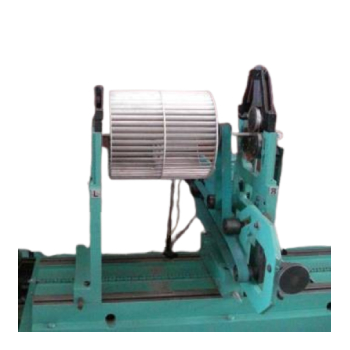

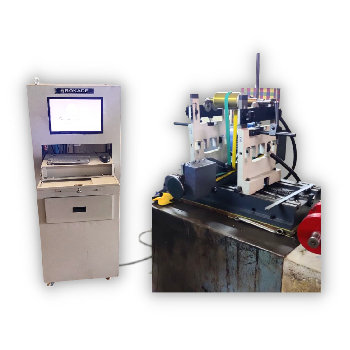

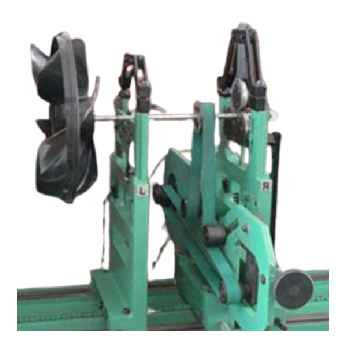

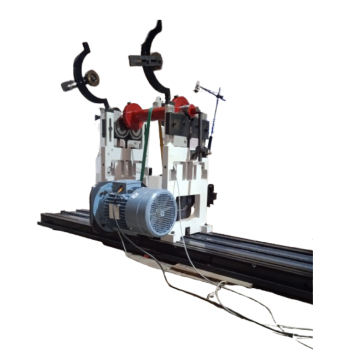

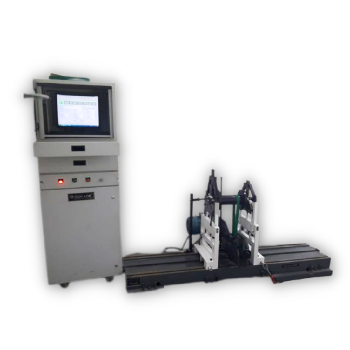

Belt Drive Balancer


Belt Drive Balancing Machines

Features

1.Specially designed brackets transmit mechanical force with low vibration damping

2.Durable and reliable sensor possesses good linearity

3.Permanent calibration brings high accuracy with a permission of large initial unbalance amount

4.Belt-driving offers higher precision and easier operation

5.Advanced electrical measuring system and friendly man-machine interface

6.Modular design offers a wide range of application

7.PHQ series are applicable for balancing rotating parts of motor fan impeller pump impeller turbocharger crankshaft centrifuge roller spindle etc

Technical Specifications

Specification is based upon size of workpieces

Applicable to small workpieces

Technical data at a glance PHQ-1.6/5 PHQ-1.6A/5A PHQ-G5 PHQ-16A
Max Mass of Workpiece(kg) 1.6/5 1.6/5 5 16
Max Diameter of Workpiece (mm) Φ300 Φ300 Φ300 Φ300
Distance Between Two Support Bearings (mm) 15~500 15~500 15~500 15~500
Journal Diameter Scope of Workpiece (mm) Φ 3~40(120°) Φ 3~40 Φ 3~40 Φ 3~40
Diameter Scope of Driving Belt (mm) Φ20~85 Φ15~150 Φ20~85 Φ15~150
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) ~14701) ~14701) ~14701) ~14701)
Motor Power (kw) 0.2DC 0.2DC 0.2DC 0.2DC
Min Achievable Residual Unbalance Amount (emar) ≤0.15g· mm/kg ≤0.15g· mm/kg ≤0.15g· mm/kg ≤0.15g· mm/kg

Applicable to medium workpieces

Technical data at a glance PHQ-50 PHQ-160H PHQ-300H PHQ-500H
Max Mass of Workpiece(kg) 50 160 300 500
Max Diameter of Workpiece (mm) Φ700 Φ1000 Φ1220 Φ1500
Distance Between Two Support Bearings (mm) 80~700 130~1270 130~1270 130~1270
Journal Diameter Scope of Workpiece (mm) Φ 8~753) Φ 15~753) Φ 15~753) Φ 15~753)
Diameter Scope of Driving Belt (mm) Φ18~200 Φmax400 Φmax500 Φmax600
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) 700,10501) ~1176 ~1176 ~1176
Motor Power (kw) 0.752) 1.52) 1.52) 2.22)
Length of Bed (mm) 1500 1500 1500
Min Achievable Residual Unbalance Amount (emar) ≤0.15g· mm/kg ≤0.15g· mm/kg ≤0.15g· mm/kg ≤0.15g· mm/kg

Applicable to large workpieces

Technical data at a glance PHQ-1000H PHQ-2000H PHQ-3000H PHQ-5000H
Max Mass of Workpiece(kg) 1000 2000 3000 5000
Max Diameter of Workpiece (mm) Φ1600 Φ1800 Φ2100 Φ2400
Distance Between Two Support Bearings (mm) 160~1780 160~1780 160~2280 500~2200
Journal Diameter Scope of Workpiece (mm) Φ 25~1204) Φ25~1204) Φ25~1204) Φ40~380
Diameter Scope of Driving Belt (mm) Φmax700 Φmax800 Φmax900 Φ50~1000
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) 1330,19181) 684,9861) 921,13291) 795,18531)
Motor Power (kw) 42) 5.52) 7.52) 152)
Length of Bed (mm) 2000 2000 2500 2500
Min Achievable Residual Unbalance Amount (emar) ≤0.15g· mm/kg ≤0.15g· mm/kg ≤0.15g· mm/kg ≤0.5g· mm/kg

Applicable to huge workpieces

Technical data at a glance PHQ-10000 PHQ-15000 PHQ-20000
Max Mass of Workpiece(kg) 10000 15000 20000
Max Diameter of Workpiece (mm) Φ2400 Φ2800 Φ2800
Distance Between Two Support Bearings (mm) 750~4600 750~5600 750~5600
Journal Diameter Scope of Workpiece (mm) Φ 60~400 Φ60~400 Φ60~400
Diameter Scope of Driving Belt (mm) Φ50~1000 Φ100~1300 Φ100~1300
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) 795,18531) 795,18531) 795,18531)
Motor Power (kw) 18.52) 302) 302)
Length of Bed (mm) 2500 2500 2500
Min Achievable Residual Unbalance Amount (emar) ≤0.5g· mm/kg ≤0.5g· mm/kg ≤0.5g· mm/kg
