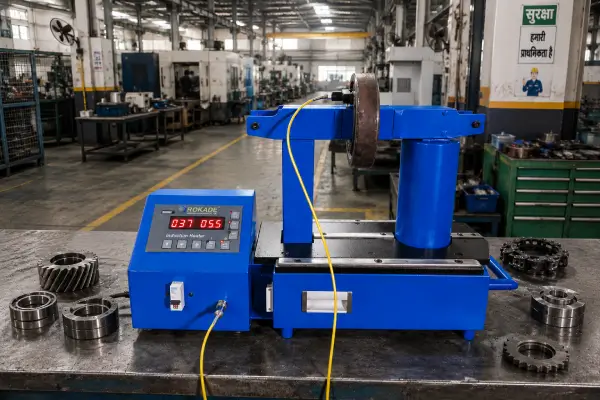

Bearing Induction Heater - RIH-1002
Where parts are to be heated before installation ROKADE HI-1002 can be used. Fast, easy and cost-effective heating of any part before installation can be conducted. Bearing heating, coupling heating and installation, gearbox assembling is performed several times faster in comparison with traditional methods (hot plates, oil bath, burners, etc). Heating of parts weighing up to 125 kg with an inner diameter up to 20 mm can be conducted by using ROKADE HI-1002.It is provided with an electronic timer from 0 to 99 minutes. 6 kVA is the maximum power.
Technical Specifications
| Product Data | RIH - 1002 |
|---|---|
| Diameter mm (Bearing) | 20 – 550 |
| Bearing Weight | 125 Kg |
| Power | 4.6 / 6.0 KVA |
| Voltage | 230V/ 440V |
| Power Control | 25%, 50%, 75% & 100% |
| Temperature Control | 0 - 250°C |
| Maximum Temperature | 400C |
| Accuracy Temperature | ±3° C |
| Time – Control | 0 - 99 Minutes |
| Residual Magnetism | < 2A / cm |
| Overall Dimensions (wxdxh) (mm) | 690 x 265 x 390 |
| Space between supports (wxh) (mm) | 200 x 245 |
| Weight (Main Unit) | 54 Kg |
| Weight with Standard Yokes | 68 Kg |
| Horizontal Yoke Sizes (mm) | 60 x 60 x 350 |
| 28 x 28 x 350 | |
| 14 x 14 x 350 | |
| Can Heat Sealed & Pre-greased Bearings | ✓ |
| Thermal Over Protection | ✓ |
| Optional Accessories | |
| Horizontal Yoke Sizes (mm) | 20 x 20 x 350 |
| 30 x 30 x 350 | |
| 40 x 40 x 350 | |
| 50 x 50 x 350 | |
| Digital Thermometer (0-500C) | ✓ |
| Roll - Sliding Model | ✓ |
| Swing Arm Model | ✓ |
| Riser Block (Pair) (mm) | ✓ |
| Magnetic Temperature Probe | ✓ |
