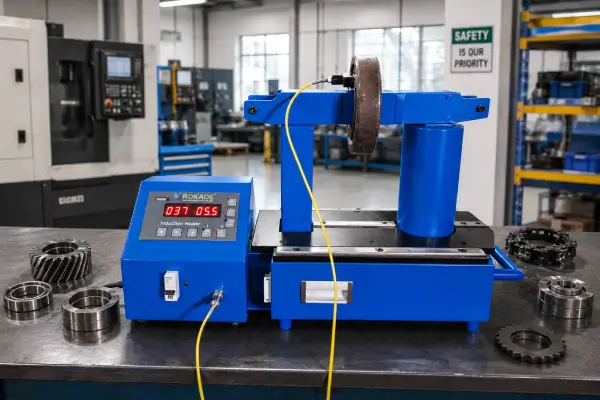

Bearing Induction Heater - RIH-1001
RIH-1001 is intended to heat bearings and parts weighing up to 105 kg. The Induction Heater has heating temperature range 0-250°C. The rotatable yoke is easily put to the bearing hole.
The Heat has electronic timer from 0 to 99minutes for setting the heating time, has the function of automatic protection from overheating and automatic demagnetization. It weighs 42 kg and is designed to heat parts with a maximum outer diameter of 400 mm.
Technical Specifications
| Product Data | RIH - 1001 |
|---|---|
| Diameter mm (Bearing) | 20 – 400 |
| Bearing Weight | 105 Kg |
| Power | 3.6 / 4.6 KVA |
| Voltage | 230V/ 440V |
| Power Control | 25%, 50%, 75% & 100% |
| Temperature Control | 0 - 250°C |
| Maximum Temperature | 400C |
| Accuracy Temperature | ±3° C |
| Time – Control | 0 - 99 Minutes |
| Residual Magnetism | < 2A / cm |
| Overall Dimensions (wxdxh) (mm) | 690 x 265 x 360 |
| Space between supports (wxh) (mm) | 160 x 215 |
| Weight (Main Unit) | 42 Kg |
| Weight with Standard Yokes | 52 Kg |
| Horizontal Yoke Sizes (mm) | 56 x 56 x 300 |
| 28 x 28 x 300 | |
| 14 x 14 x 300 | |
| Can Heat Sealed & Pre-greased Bearings | ✓ |
| Thermal Over Protection | ✓ |
| Optional Accessories | |
| Horizontal Yoke Sizes (mm) | 20 x 20 x 300 |
| 30 x 30 x 300 | |
| 40 x 40 x 300 | |
| 50 x 50 x 300 | |
| Digital Thermometer (0-500C) | ✓ |
| Roll - Sliding Model | ✓ |
| Swing Arm Model | ✓ |
| Riser Block (Pair) (mm) | ✓ |
| Magnetic Temperature Probe | ✓ |
