Vibration Shock Pulse Meter BALTECH VP-3450

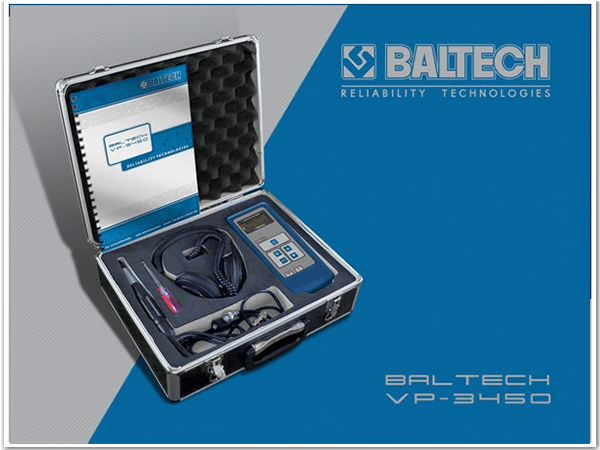

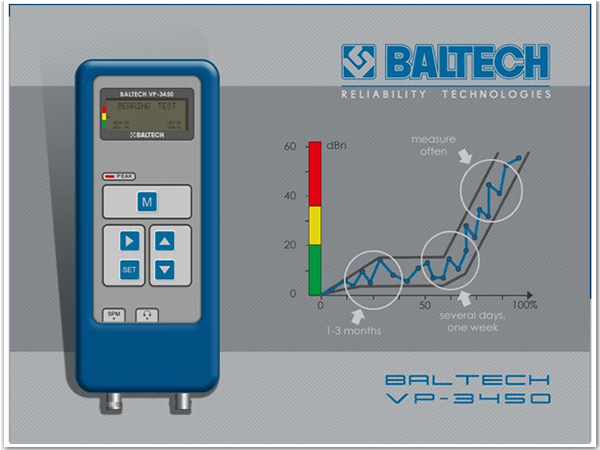

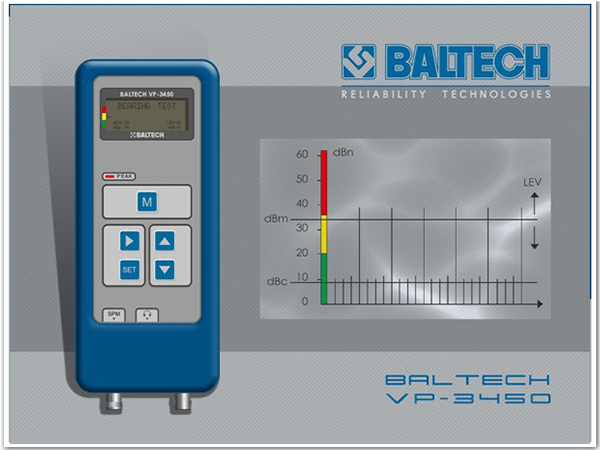

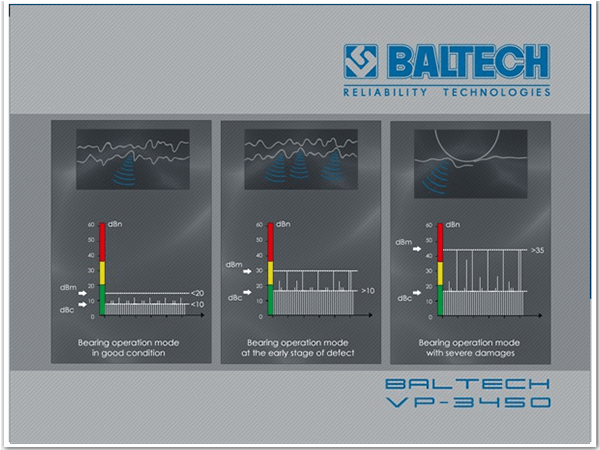

Bearing check and control are efficiently performed by the shock pulse method. The portable device BALTECH VP-3450 is designed to control a vibration level of rolling element bearings and lubricant condition in a bearing assembly. A bearing condition is evaluated by a color scale: green- good, yellow- warning, red- defect. Critical frequencies that can cause damage or create disturbing noise levels can be detected.
Technical Specifications
Vibration meter | BALTECH VP-3450 |
---|---|
Parameters | shock pulses |
Measurement range | -9-99 dBsv |
Resolution | 1 dBsv |
Measurement error | ±2 dBsv |
Display | LCD |
Power supply | 6 x 1.5V LR6 |
Keyboard | Film |
Operation temperature range | 0oC...+50°C |
Environment conditions | Relative humidity:< 80% |
Dimensions (W×L×H), mm | 255×105×60 |
Housing material | ABS plastic |
Weight of the electronic unit | 800g |
